商品詳細

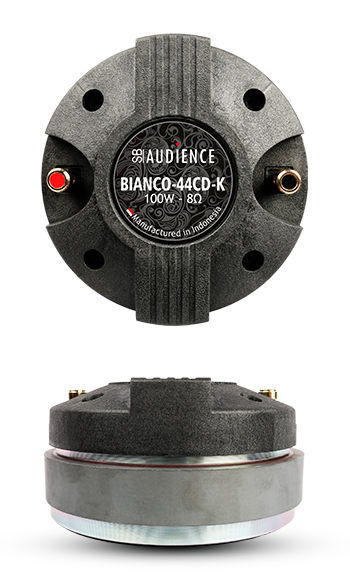

【製品の特長】
・カプトンを採用した超軽量振動板
・高い能率
・プッシュ端子採用でケーブルの取付が簡単
Specs
Nominal Impedance：8 Ohm
RDC：6.2 Ohm
AES Power Handling (1)：50 W
Maximum Power Handling (2)：100 W
Sensitivity (1W/1m)(3)：108 dB

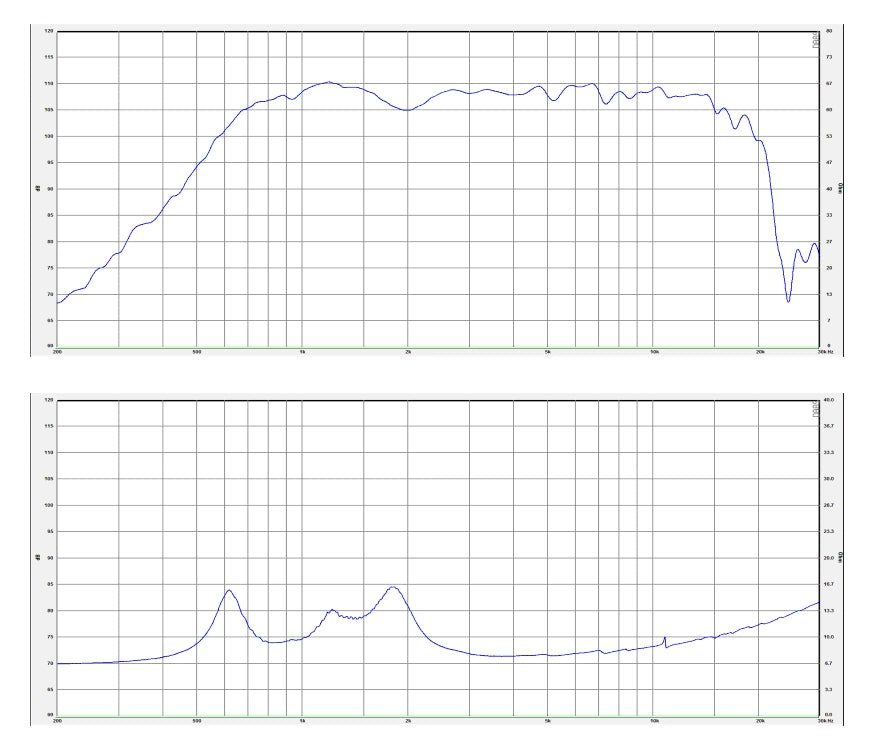

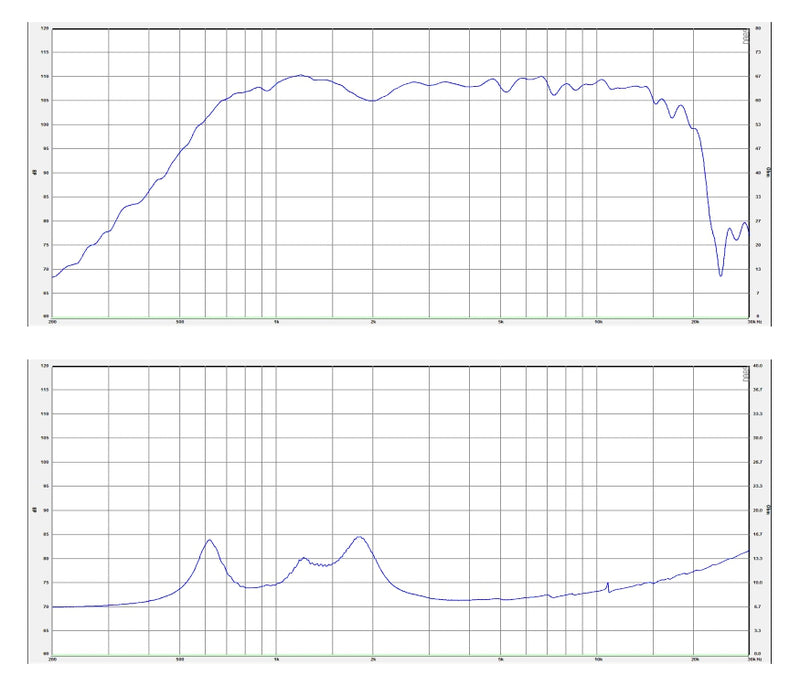

Frequency Range：700 - 20000 Hz
Recommended Crossover Frequency：1.8 kHz
Voice Coil Diameter：44 mm (1.73 in)
Winding Material：Flat copper clad aluminium
Former Material：Kapton
Winding Depth：2.25 mm (0.09 in)
Magnetic Gap Depth：2.5 mm (0.10 in)
Diaphragm Material：Kapton
Flux Density：1.59 T
Magnet：Ferrite
Demodulation：-
Phase Plug Design：Annular
Total Exit Angle：10.9° conical
NET Air Volume filled by HF Driver：0.59 liters

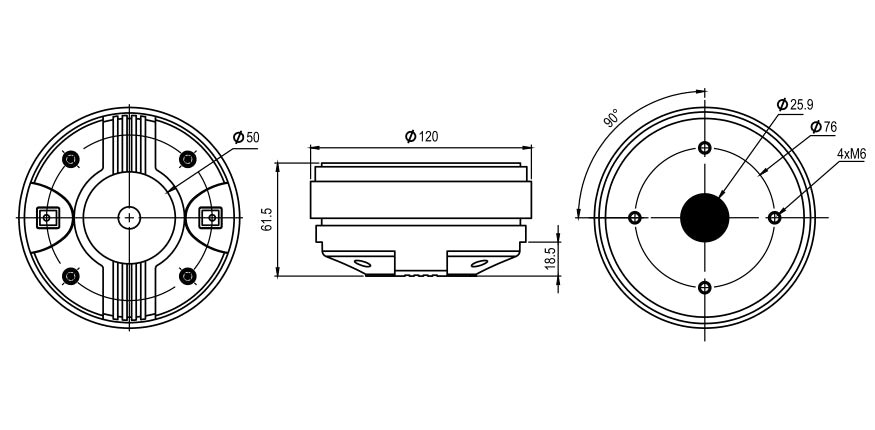

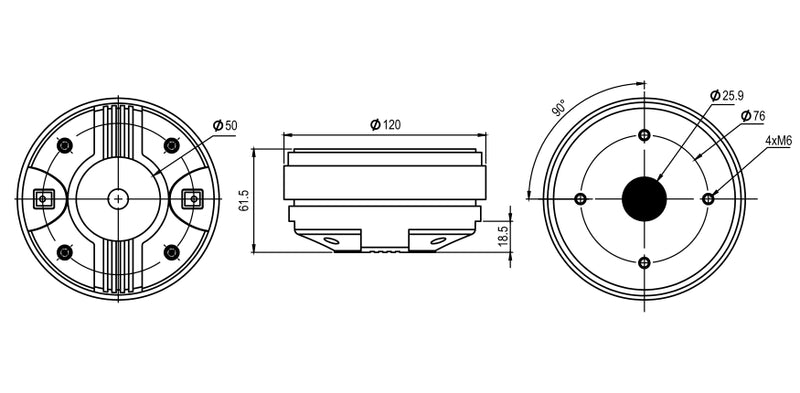

Dimensions & Weight
Nominal Throat Diameter：25.4 mm (1 in)
Overall Diameter：120 mm (4.7 in)
90° Mounting Holes Diameter (4xM6)：76 mm (3 in)
Depth：61.5 mm (2.4 in)
Net Weight：2.22 kg (4.9 lb)
Shipping Box：139 x 121 x 73 mm (5.5 x 4.8 x 2.9 in)
Gross Weight：2.3 Kg (5.1 lb)
Replacement Diaphragm
1P000OPSB005
NOTES :
Driver mounted on Horn H250
(1) 2 hour test made with continuous pink noise signal within the range from
the recommended crossover frequency to 20kHz.
(2) Maximum power is defined as 3dB greater than nominal power.
(3) Averaged within the frequency range (1kHz - 18kHz)
こちらの商品のデータシートはコチラ(PDF)からどうぞ
